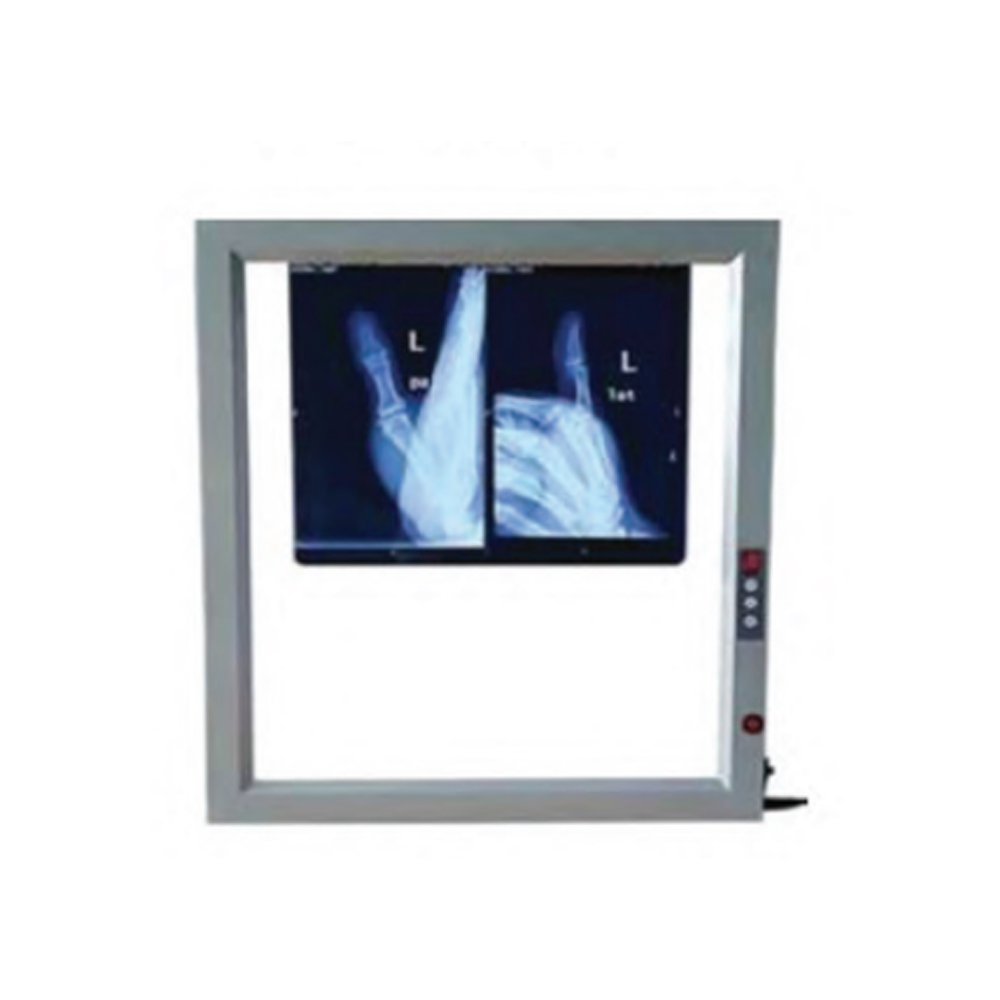

X Ray Viewer — commercial product visual

Commercial production visual · specification confirmed on enquiry

Hospital HygieneSanitary flush TIG welds

Custom FitoutBuilt to your floorplan

Fast DeliveryDirect across UAE & GCC

REF: WC-EQ-09Commercial & Healthcare Series

X Ray Viewer

Ultra-slim LED radiographic film illuminator panel providing uniform flicker-free diagnostic backlight for diagnostic imaging suites.

Hospital-Grade AISI 304 & 316L Stainless SteelSanitary TIG Robotic & Manual WeldingPrecision CNC Laser Cutting & FormingEngineered & Fabricated in Hamriyah Free Zone, UAE

Key Clinical & Design Highlights

High-luminance uniform LED backlight panel (over 4,000 cd/m²)
Optical grade light guide plate preventing flicker and eyestrain
Automatic film-insertion sensor switch for immediate activation
Ultra-slim 25mm extruded aluminium frame with silicone film grips

Commercial Supply & Quotation

2–4 business days · Immediate UAE dispatch

Standard Sizing:750mm (W) × 500mm (H) × 25mm (D)

Instant WhatsApp Enquiry

✓ Fast turnaround✓ Direct UAE factory pricing✓ MoHAP compliant

Explore complete catalogue Call: +971 58 856 0759

Engineering & Materials

Clinical precision.
In every single seam.

Built to withstand stringent disinfectant chemicals, high mechanical loads, and demanding daily healthcare routines.

Engineering Fabrication Specifications

X Ray Viewer Engineering Fabrication Specifications
Catalogue Reference	WC-EQ-09
Standard Sizing	750mm (W) × 500mm (H) × 25mm (D)
Grade	AISI 304/316L stainless steel
Material Grade	Hospital-Grade AISI 304 & 316L austenitic stainless steel
Construction	Fully-welded sanitary seams with continuous TIG purge, ground flush & passivated
Finish	Satin brushed antimicrobial finish (Ra < 0.5 µm), wipe-clean sanitary surface
Load Capacity	Heavy-duty structural load capacity (tested for high-frequency clinical workflows)
Standard Compliance	UAE MoHAP healthcare criteria compliant · ISO 9001 quality fabrication standard
Fabrication Origin	Engineered & precision-fabricated in Hamriyah Free Zone, Sharjah, UAE
Lead Time & Dispatch	2–4 business days · Immediate UAE dispatch

Custom Fabrication & Options

We customize dimensions, configurations, and finishes to align with your facility floor plans and medical equipment:

Single bank (1-film), double bank (2-film), or 3-film arrays
Recessed wall flush-mount or surface wall bracket
Integrated digital mammography high-intensity mode
Foot switch operational toggle

Need architectural CAD shop drawings, custom sizing, or bulk hospital tender quotations?

Functional Capabilities

Designed for purpose.
Refined for performance.

Key ergonomic and operational features engineered for X Ray Viewer.

High-luminance uniform LED backlight panel (over 4,000 cd/m²)

Optical grade light guide plate preventing flicker and eyestrain

Automatic film-insertion sensor switch for immediate activation

Ultra-slim 25mm extruded aluminium frame with silicone film grips

Independent stepless digital brightness dimmer control

Low heat dissipation ensuring long LED diode lifespan (50,000+ hrs)

Commercial Assurance

Healthcare standards.
Local UAE reliability.

Sanitary Infection Control

Seamless coved internal radii, flush sanitary welds, and passivated non-porous surfaces prevent dirt traps and bacteria growth.

Hamriyah Free Zone Facility

Manufactured in our Sharjah fabrication plant utilizing modern CNC laser cutting, press-brake forming, and certified TIG welding.

Tested Durability

Structural load tested for high-frequency clinical environments, corrosion immunity, and long service lifespan with local warranty.

Engineering Consultation

Direct collaboration with hospital planners, healthcare contractors, and interior designers from takeoff to final commissioning.

Procurement & Ordering

Planning your order.
Clear, transparent support.

How do I receive an official quotation for X Ray Viewer?

Click "Request Official Quotation" or click "Instant WhatsApp Enquiry". Provide your project name, required quantity, delivery location, and any custom sizing. Our estimating department will prepare an official commercial quotation with lead times and technical data.

Can this item be customized to fit specific architectural room dimensions?

Yes. Because we operate our own precision fabrication facility in Hamriyah Free Zone, Sharjah, we can adjust height, width, depth, drawer configuration, and mounting styles to fit your architectural layout and plumbing connections.

What materials and hygienic finishes are used?

Depending on the product family, we use medical-grade AISI 304 or 316L austenitic stainless steel with satin brushed antimicrobial polish, solid Corian surfaces, or medical antibacterial laminate, all compliant with UAE healthcare facility standards.

What are the delivery and installation arrangements in the UAE?

We deliver across Dubai, Abu Dhabi, Sharjah, Ajman, RAK, Fujairah, and UAQ, with dedicated handling to ensure pristine delivery. Export to GCC countries (Saudi Arabia, Oman, Qatar, Bahrain, Kuwait) is also readily supported.
